Transportation:Ocean
Port:SHANGHAI
Model No.: Nickel 200
Place Of Origin: China
Type: Nickel Pipe
Resistance (μΩ.m): Stable
Ni (Min): Balance
Application: Chemical Processing
Elongation (≥ %): 40%
W.Nr: 2.4061/2.4060
Material: Pure Ni 99.6%
Packaging: (wooden boxes package,pvc package,and other package).or as buyers requirement.
Transportation: Ocean
Place of Origin: china
Supply Ability: 500 Kilogram/Kilograms per Month
Port: SHANGHAI

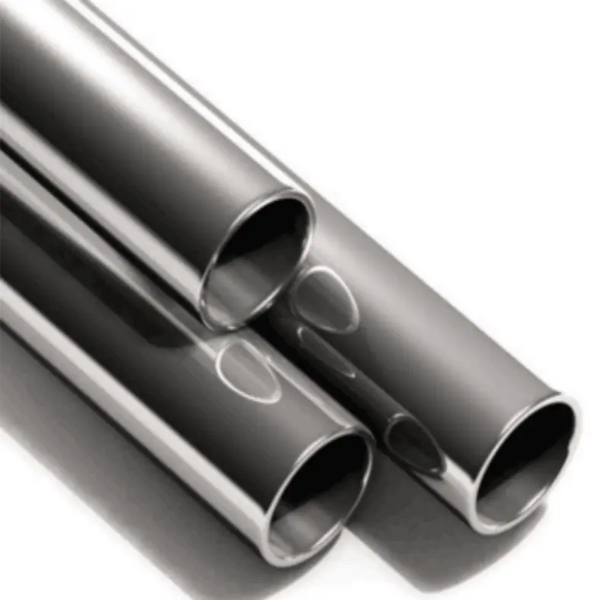

Nickel-based alloy Nickel 200 pipe
Nickel 200 Characteristic as below:
(1)Excellent mechanical properties
(2)Magnetic properties
(3)High thermal
(4)Electrical conductivity
(5)Excellent resistance
Application filed:
(1)Aerospace components
(2)Food processing equipment
(3)(15)Magnetostiective devices
(4)Chemical processing
(5)Marine engineeing
(6)Power generation
(7)Oil and gas extractionPetrochemical processing
(8)Telecommunication
Nickel 200 Specifications
| Grade | UNS | W.Nr |
| Nickel 200 | N02200 | 2.4061/2.4060 |
Nickel 200 chemical composition
| Grade(%) | Ni | Fe | C | Mn | Si | Cu | S |
| Nickel 200 | Bal. | ≤0.4 | ≤0.15 | ≤0.35 | ≤0.35 | ≤0.25 | ≤0.01 |
Nickel 200 Mechanical properties(Min Value at 20℃)
| Grade | Tensile Strength σp/MPa | Yield Strength σp0.2/MPa | Elongation σ5% |
| Nickel 200 | 380 | 105 | 40 |
Nickel 200 Standards
| Bar | Forging | Sheet/Strip | Wire | Pipe |
| ASTM B160 | ASTM B564 | AMS B162 | ASTM B166 | ASTM B161 ASTM B163 ASTM B751 ASTM B725 |
The reason why you choose us
1. The Leading manufacturer of nickel based alloy Porducts
2. The drafter & Reviser Of National Standard GB/T1234 regarding Electrothermal Alloy.
3. Over 20 years experience
4. Small quantity, short time delivery
If we have stocks, we can ship from a minimum of 1 kg sample in a few days.We also manufacture custom-order materials in amounts of 100 kg and up (Some materials are allowed 50 kg) in as few as 3 weeks.
5. High-precision thickness
We guarantee thickness tolerances that cannot be reproduced by competitors.
Example:
t <0.30mm Tolerance ±1 - 3 μm guaranteed
0.30 mm≤t Tolerance ± 1% guaranteed
6. complete QC system & Advanced physical and chemical testing center
For each production processing, we have complete QC system for the chemical compostion and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
7. Effective and strong technical support and custom-made solutions
We provide customed solutions to your problems with our strong technologies and well versed knowledge of materials acquired through our more than 20 experience.
8. Choose the appropriate base metals for your needs
We carefully balance quality, delivery time and price,procure various base metals from all over the world.We manufacture appropriate products to your needs.
9. Reliable certificate (ISO 9001/ROHS/BV/SGS/TUV)
Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc. The third party testing is available for us.
