Transportation:Ocean
Port:shanghai
Place Of Origin: China
Type: Nickel Bar
Ultimate Strength (≥ MPa): 690
Elongation (≥ %): 30
Ni (Min): 50%
Application: alloy x apply Aircraft engin
Material: Nickel Alloy Hastelloy x
Transportation: Ocean
Place of Origin: china
Port: shanghai

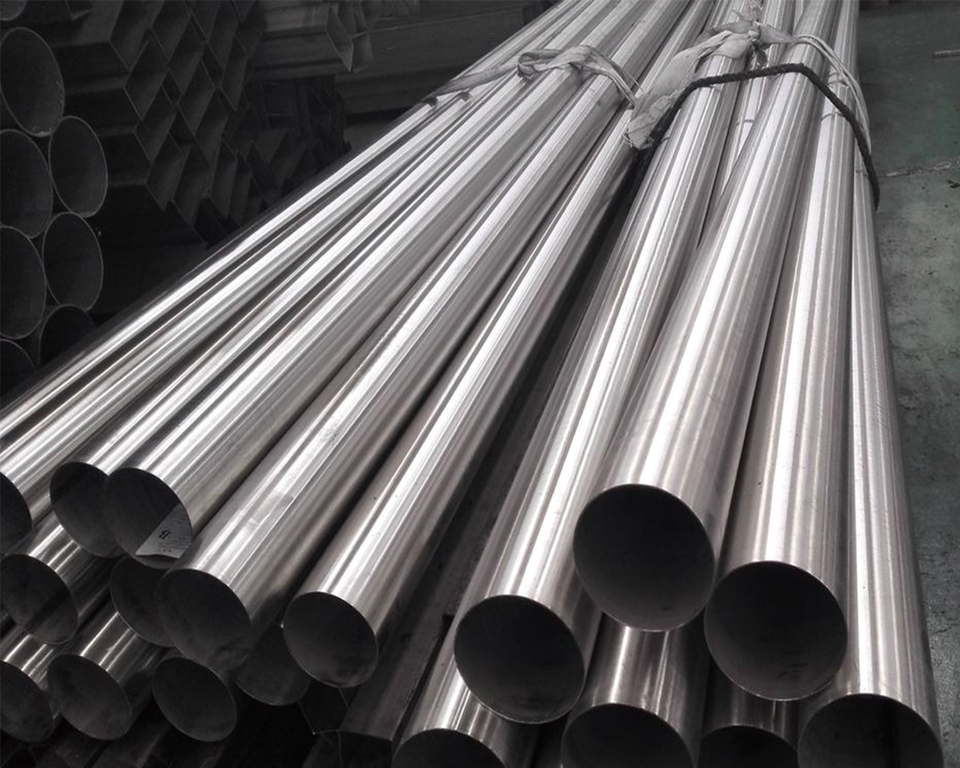

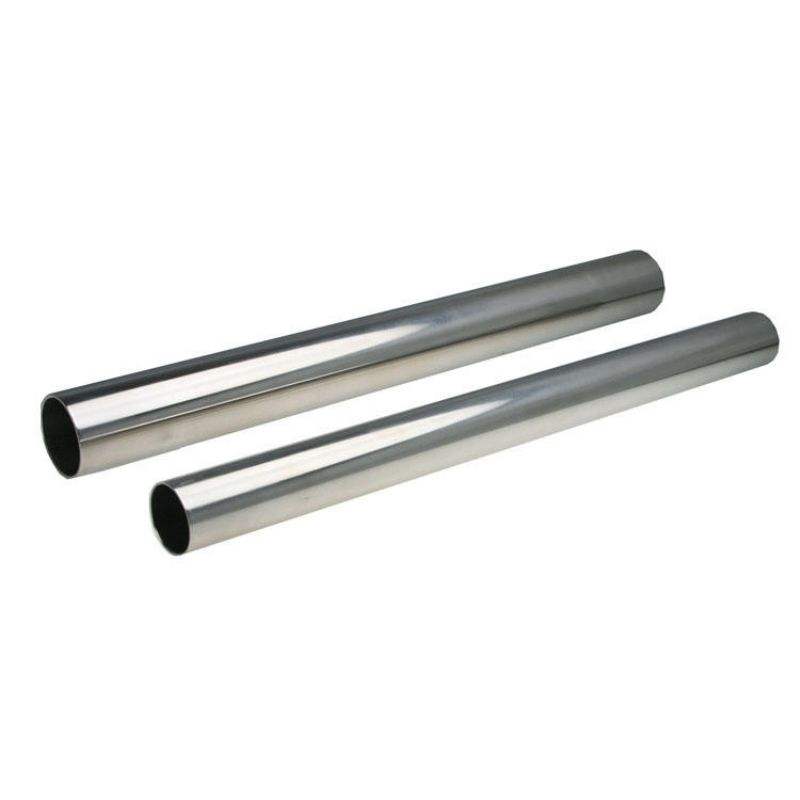

UNS N06002 special nickel hastelloy x seamless tube
Alloy X has exceptional strength and oxidation resistance up 1200°C. And it has been found exceptionally resistant to stress-corrosion cracking in petrochemical applications. Alloy X is recommended especially for use in furnace applications because it has unusual resistance to oxidizing, reducing, and neutral atmospheres.
Alloy X Specification
| UNS | W.Nr |
| N06602 | 2.4665 |
Alloy X Chemical composition
| Grade | % | Ni | Cr | Fe | Mo | W | Co | C | Mn | Si | S | Cu | Al | Ti |
| X | Min | Bal. | 20.5 | 17.0 | 8.0 | 0.2 | 0.5 | 0.05 |
|
|
|
|
|
|
| Max | 23.0 | 20.0 | 10.0 | 1.0 | 2.5 | 0.15 | 1.0 | 1.0 | 0.015 | 0.5 | 0.15 | 0.5 |
Alloy X Mechanical properties:(Minimum value at 20°C)
| Tensile Strength σb/MPa | Yield Strength σp0.2/MPa | Elongation σ5 /% |
| 690 | 275 | 30 |
Alloy X Standard
| Bar | Sheet/Strip | Wire | Pipe |
| ASTM B572 | ASTM B435 | ASTM B166 | ASTM B622 |
| Other Nickel Alloy products | ||||
| Inconel | Incoloy | Monel | Hastelloy | Nimonic |
| Inconel 600 | Incoloy 800 | Monel 400 | Hastelloy X | Nimonic 75 |
| Inconel 601 | Incoloy 800H | Monel K500 | Hastelloy C276 | Nimonic 80A |
| Inconel 625 | Incoloy 800HT | Hastelloy B | Nimonic 90 | |
| Inconel 718 | Incoloy 825 | Hastelloy B2 | Nimonic 105 | |
| Inconel X-750 | Incoloy A286 | Hastelloy B3 | ||
| Inconel 660 | Incoloy 925 | |||
| Inconel 690 | ||||
| Pure Nickel | Precision Alloy | Other | Welding Material | |
| Nickel 200 | 1J50 | 904L | ERNi-1 | ER308 |
| Nickel 201 | 1J79 | Alloy 20 | ERNiCrMo-3 | ER308LSi |
| 1J85 | ERNiCr-3 | ER309 | ||
| 4J29 Kovar | ERNiCu-3 | ER309L | ||
| 4J36 Invar 36 | ERNiCrMo-4 | ER316 | ||
| Alloy 42 | ERNiFeCr-1 | ER316L | ||
| ERNiFeCr-2 | ER316LSi | |||
| ERNiCrFe-11 | ER385 | |||
