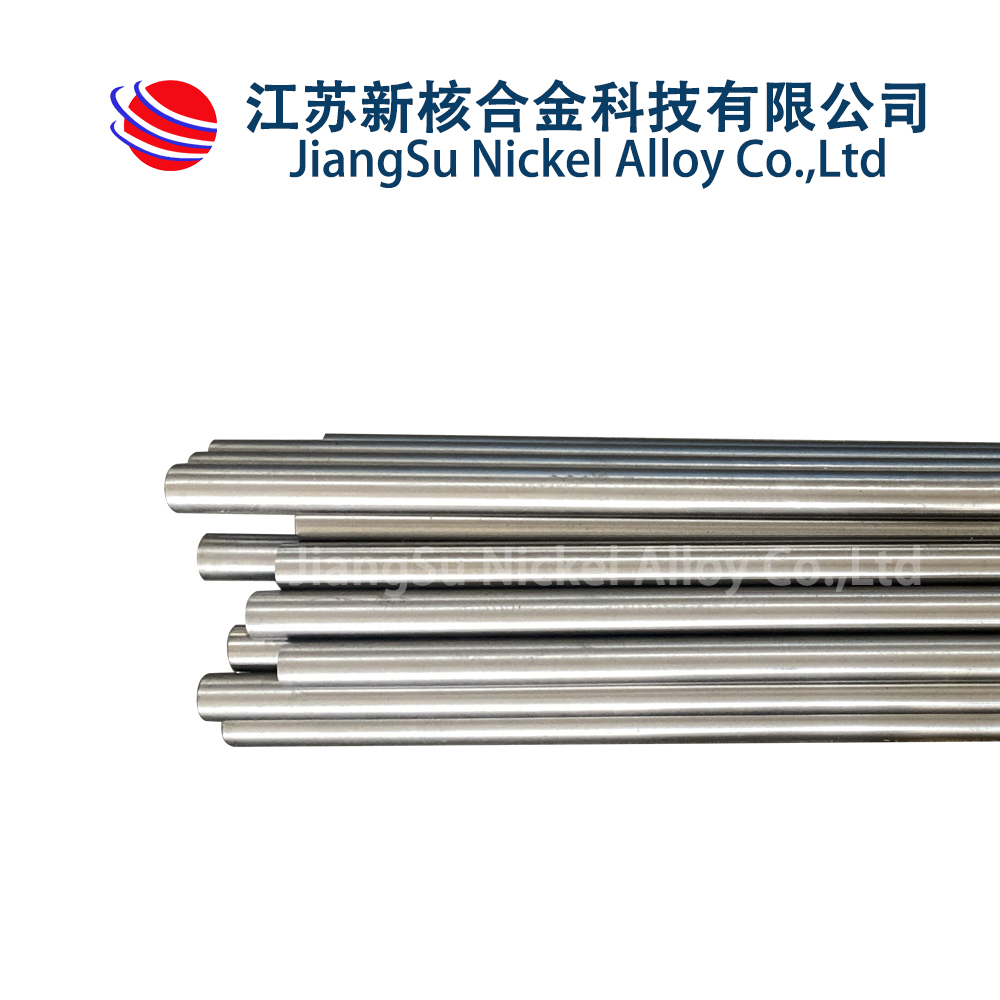

Cr20Ni80 Resistance electrothermal alloy bar

Payment Type:L/C,T/T,Paypal

Incoterm:FOB,CFR,CIF,EXW,FCA

Transportation:Ocean,Land,Air,Express

Port:SHANGHAI

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: Jiangsu Xinhua

Supply Ability & Additional Information

Packaging: standard export packing, plastic film inside, wooden pallets outside , choose the suitable packing

Productivity: 20 metric tons per month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 20 metric tons per month

Certificate: ISO9000

Port: SHANGHAI

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery

Selling Units:

Kilogram

Package Type:

standard export packing, plastic film inside, wooden pallets outside , choose the suitable packing



c1db0297142752be4cfdf91f4803e70b



strip video high temperature alloy



e3a1375b947de29e846125e06855d0a1



China Nickel Alloy, High heating alloy, High Temperature Alloy supplier (xhalloy.com)

Cr20Ni80 is a resistance electrothermal alloy, this kind of alloy has stable structure, stable electrical and physical properties, good High temperature mechanical properties, good cold deformation plasticity, good weldability, long-term use will not produce brittle fracture. It is mostly used in the manufacture of household appliances and heating elements with operating temperatures below 1000°C, and has a long service life.

0Cr21A16 FeCrAl Resistance Heating Element Wire China Manufacturers Suppliers Factory Exporter (xhalloy.com)

FEATURE

Excellent performance in high-temperature environments with high thermal stability and oxidation resistance.
The alloy contains high chromium and nickel components, and its excellent corrosion resistance, due to its outstanding performance in wet and oxidizing environments.
It has good mechanical properties, including high strength, high hardness, good ductility and toughness.
The alloy is single-phase austenite after solution treatment, and the microstructure is stable during use.

Resistance Electrothermal Alloy

CHEMICAL COMPONENT

Element	Cr	Ni	Al	C	Mn	Si	Fe	P	S
Min	20	Bal	-	-	-	0.75	-	-	-
Max	23	Bal	0.50	0.08	0.60	1.6	1.0	0.02	0.015

PHYSICAL&MECHANICAL PROPERTIES

Density	Melting	Tensile strength	Yield strength	Elongation
8.4 g/cm³	1400°C	650 MPa	300 MPa	≥20%

APPLICATION AREA

Electric heating elements: such as electric heat pipe, electric furnace wire, resistance belt, etc., used to manufacture a variety of high temperature heating equipment, such as industrial furnace, heat treatment furnace, glass melting furnace, etc.
Heating wire for high grade electric heat pipe and high grade household electric heater.
Resistance tape for high quality resistance boxes.
It can also be used as high-quality heat-resistant steel structural parts, such as high temperature mesh belt, burning frame, etc.
Chemical equipment such as reactors, heat exchangers, etc. are suitable for a variety of corrosive environments because of their corrosion resistance.
