Description: 0Cr23Al5 is an iron-chromium-aluminum electric heating alloy. It is widely used in the manufacturing of industrial

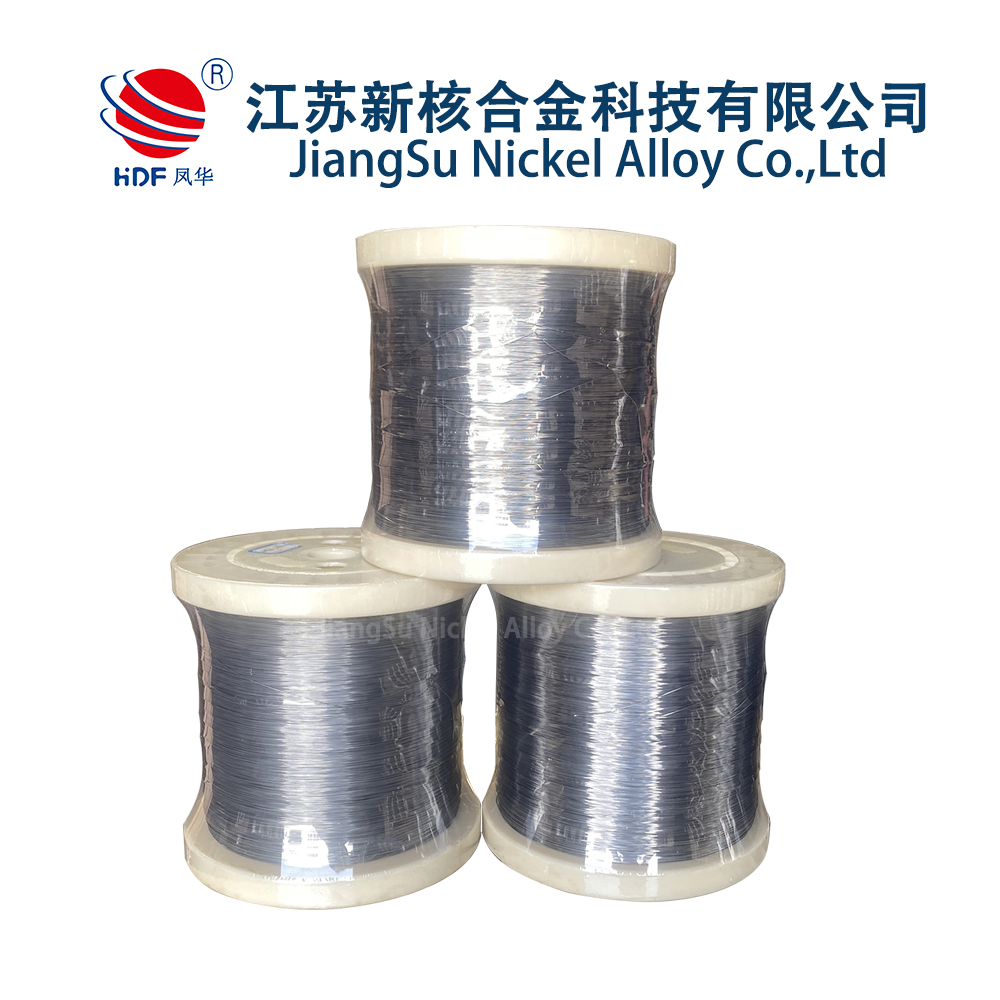

Durable 0Cr23Al5 Heating Element Wire

Payment Type:L/C,T/T,Paypal

Incoterm:FOB,CFR,CIF,EXW,FCA

Transportation:Ocean,Land,Air,Express

Port:SHANGHAI

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: HDF

Supply Ability & Additional Information

Packaging: standard export packing, plastic film inside, wooden pallets outside , choose the suitable packing

Productivity: 20 Metric tons per month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 20 Metric tons per month

Certificate: ISO9001

Port: SHANGHAI

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA

Packaging & Delivery

Selling Units:

Kilogram

Package Type:

standard export packing, plastic film inside, wooden pallets outside , choose the suitable packing



c1db0297142752be4cfdf91f4803e70b



8ec1376a279731ed0d1fc85606daf92f



fd60d49d1976249fe5137c2182513814



0Cr23Al5 is an iron-chromium-aluminum electric heating alloy. It is widely used in the manufacturing of industrial heating equipment, household appliances and high-temperature components due to its excellent High temperature resistance, oxidation resistance and stable resistance characteristics. The alloy is based on iron and forms a solid solution strengthening phase by adding chromium, aluminum and other elements, giving the material long-term stability in high temperature environments.

FEATURE

Oxidation resistance: The oxidation resistance is significantly better than that of ordinary Stainless Steel.
High temperature resistance: Maintains stable performance in high or even ultra-high temperature environments.
Electrical conductivity: It has good electrical conductivity and can meet the requirements of electrical conductivity of heating elements of electric heating equipment.
Mechanical strength: It has high strength and hardness and can withstand large loads and impacts.
Anti-permeability: It is suitable for carbon-containing atmosphere environments (such as carburizing furnaces) and is not prone to embrittlement.

CHEMICAL COMPONENT

Element	C	P	S	Mn	Si	Cr	Ni	Al	Fe
%	≤0.06	≤0.025	≤0.025	≤0.70	≤0.60	20.5-23.5	≤0.60	4.2-5.3	Bal

PHYSICAL PROPERTIES

Resistivity: 1.25-1.35, moderate resistance value, suitable as an electric heating element.

Melting point: about 1500°C, structural stability can be maintained at high temperatures.

Density: 7.1~7.3 g/cm³, lightweight properties are better than nickel-based alloys.

MECHANICAL PROPERTIES

Tensile strength: at room temperature ≥650MPa

Elongation: ≥12%

High temperature strength gradually decreases with increasing temperature, but it can still maintain a certain plasticity at 800°C.

APPLICATION AREA

Industrial electric furnace: spiral or wavy heating elements used to manufacture box furnaces and tube furnaces, which can withstand high temperatures for a long time.
Household appliances: core materials for electric heating tubes in electric ovens and electric water heaters, taking into account both safety and cost.
Aerospace: heating elements for high-temperature test equipment to meet stability requirements in special environments.
Laboratory equipment: resistance wires for high-temperature muffle furnaces and atmosphere protection furnaces, supporting precision temperature control experiments.
